As cities grow denser and taller, the comfort and safety of pedestrians in urban environments have become key aspects of sustainable design. Among the most powerful tools for assessing these factors is Computational Fluid Dynamics (CFD) simulation — a method that models how air flows through streets, around buildings, and across open spaces.

By applying CFD to pedestrian comfort analysis, urban planners, architects, and environmental engineers can predict and optimize the effects of wind, temperature, and thermal comfort, creating public spaces that are not only functional but pleasant to experience.

Understanding Pedestrian Comfort

Pedestrian comfort primarily relates to how people feel when exposed to wind and temperature conditions in outdoor environments. It can be divided into two main categories:

1. Wind Comfort: Ensures wind speeds in walkways, plazas, and entrances remain within tolerable limits for daily activities like walking, sitting, or cycling.

2. Thermal Comfort: Considers the combined effects of air temperature, radiation, humidity, and wind on human comfort, often evaluated using indices like Predicted Mean Vote (PMV) or Universal Thermal Climate Index (UTCI).

Excessive wind speeds can cause discomfort, hinder mobility, or even create safety risks. On the other hand, low wind speeds in hot climates can trap heat, making outdoor areas uncomfortably warm. Achieving balance is the key — and this is where CFD simulation excels.

How CFD Simulation Works in Urban Comfort Design

Computational Fluid Dynamics (CFD) uses numerical methods to simulate airflow and heat transfer. In the context of urban planning, it models how wind interacts with buildings, vegetation, and open spaces.

Here’s how CFD supports pedestrian comfort analysis:

1. Model Creation
   The 3D geometry of the urban area — including buildings, streets, and vegetation — is imported from CAD or BIM models.

2. Boundary Conditions Setup
   Wind profiles based on local climate data (direction, speed, turbulence) are applied at the domain boundaries. Solar radiation and surface temperatures may also be defined for thermal analysis.

3. Flow Simulation
   CFD solves equations for airflow (Navier-Stokes equations), turbulence, and sometimes thermal radiation to predict velocity, temperature, and pressure distribution throughout the environment.

4. Result Analysis

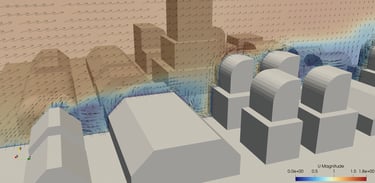

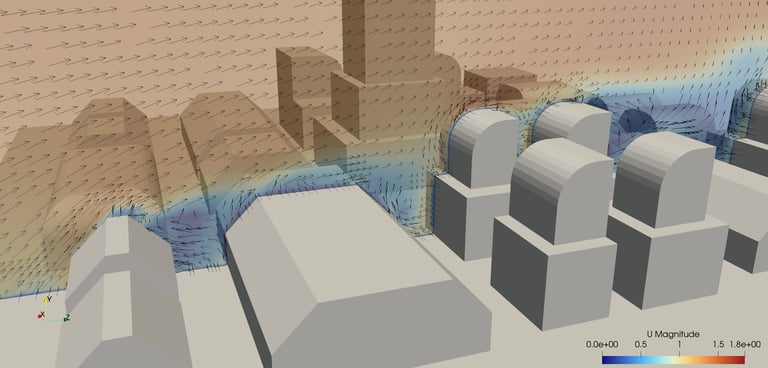

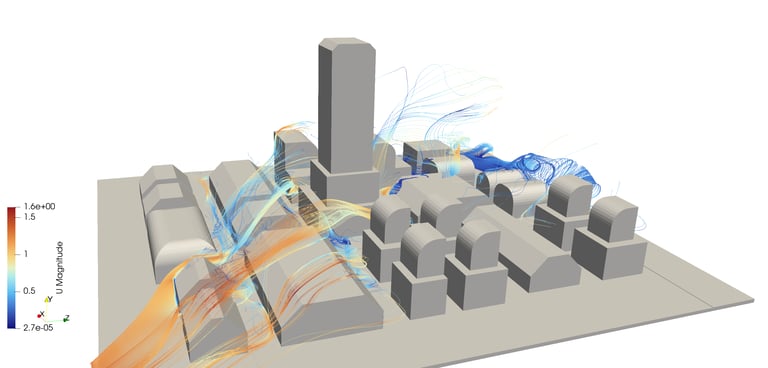

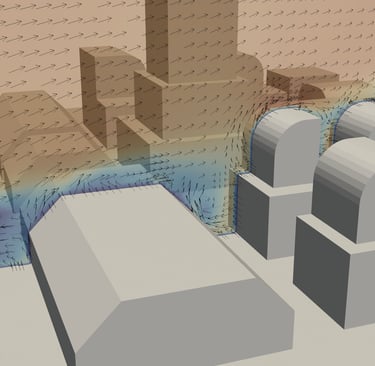

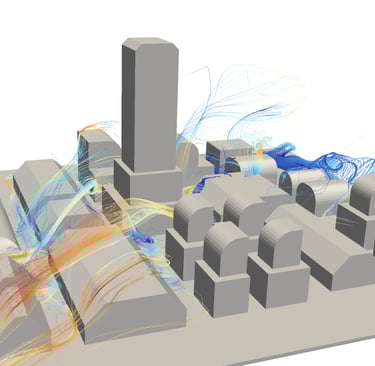

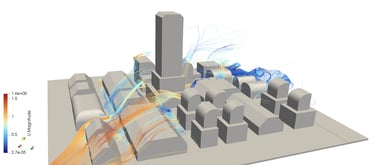

   Post-processing tools visualize results as wind speed contours, streamlines, and comfort maps, showing how wind behaves around buildings and pedestrian zones.

Key Comfort Indicators from CFD

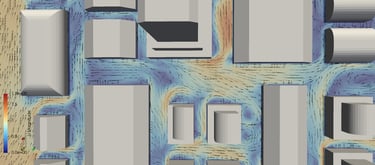

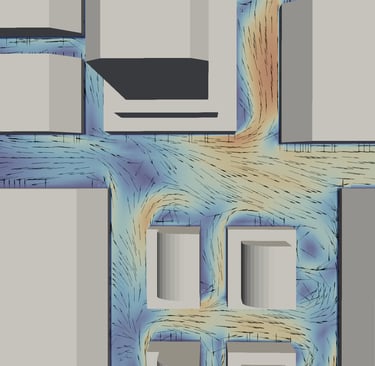

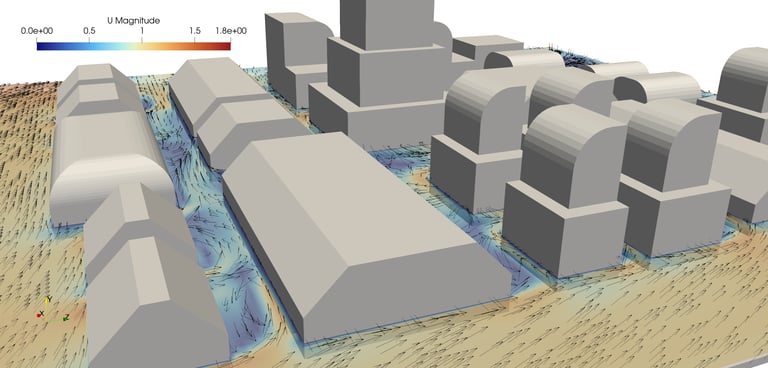

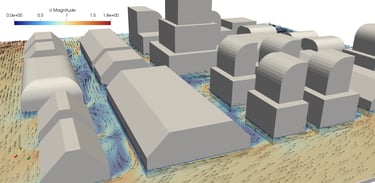

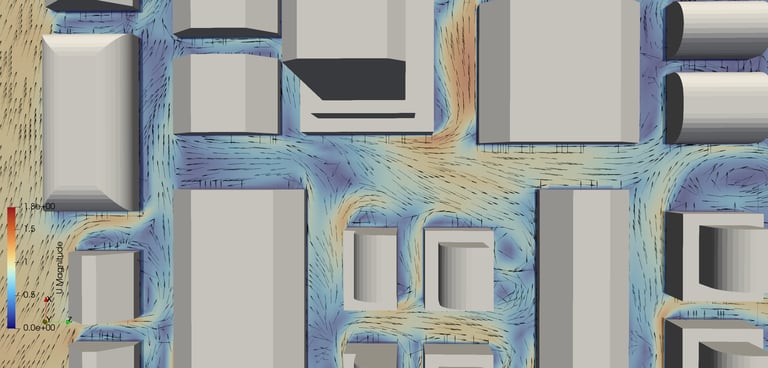

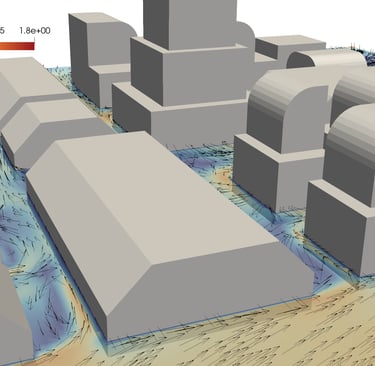

1. Wind Velocity Maps
   CFD shows where wind accelerates between buildings (the “canyon effect”) or slows in sheltered areas. Designers can identify zones of discomfort and optimize layouts.

2. Turbulence Intensity
   Excessive turbulence near corners or high-rise podiums can cause unpredictable gusts. CFD visualizes these effects clearly for mitigation.

3. Thermal Comfort Metrics (PMV, PPD, UTCI)
   CFD can couple air velocity and temperature fields to compute comfort indices that reflect human perception in outdoor environments.

4. Air Temperature Distribution
   CFD thermal analysis predicts how urban heat accumulates in certain areas — critical for mitigating urban heat island (UHI) effects.

5. Wind Safety Assessment
   High-rise clusters can cause strong downdrafts. CFD identifies these regions to ensure compliance with wind safety standards like Lawson or NEN 8100.

Applications in Urban Design

• Public Squares and Plazas: Ensure comfortable wind conditions for outdoor dining, events, and social interaction.

• High-Rise Developments: Analyze wind downdrafts and acceleration zones to protect pedestrians at building bases.

• Transit Stations and Entrances: Avoid strong gusts at exits, improving safety and accessibility.

• Green Urban Corridors: Simulate how trees and landscaping influence airflow and temperature.

• Smart City Planning: Combine CFD results with IoT data to monitor and optimize real-time comfort conditions.

CFD Simulation in Action: A Practical Example

Imagine a new mixed-use development surrounded by tall office towers. Early design studies show strong wind gusts at street corners.

Using CFD, planners simulate the airflow under various conditions:

• Adding wind canopies at entrances

• Modifying building setbacks and podium heights

• Introducing trees or porous screens for wind diffusion

The resulting CFD maps show how these interventions reduce peak wind speeds and expand comfortable pedestrian zones. This process helps designers make informed choices — not based on guesswork, but on data.

How tensorHVAC-Pro Simplifies the Process

While traditional CFD tools can be complex, tensorHVAC-Pro makes flow and thermal simulation accessible for architects and urban planners. It’s a dedicated simulation platform designed for built-environment applications, capable of evaluating air velocity, temperature, and comfort across outdoor spaces.

With tensorHVAC-Pro, users can:

• Import site geometry directly from CAD/BIM

• Set local wind profiles and sun conditions

• Generate pedestrian wind comfort maps automatically

• Visualize thermal comfort zones under seasonal scenarios

• Export results for reports or design presentations

The software provides a clear, visual understanding of how design choices affect pedestrian experience — without requiring deep CFD expertise.

Benefits of CFD for Pedestrian Comfort Design

1. Quantitative Validation
   CFD provides measurable data on wind and temperature conditions, enabling compliance with comfort standards.

2. Improved Design Decisions
   Helps optimize building shapes, orientations, and landscaping for maximum comfort.

3. Early Problem Detection
   Identifies discomfort or hazard zones before construction.

4. Sustainability Integration
   Supports energy-efficient and climate-resilient city designs by improving natural ventilation.

5. Enhanced Public Experience
   Creates safer, more enjoyable outdoor environments that encourage social activity and walkability.

Conclusion

Pedestrian comfort is a crucial measure of livability in modern cities. By integrating CFD simulation into the early stages of urban planning, designers can visualize invisible forces — wind and heat — and create data-driven solutions for outdoor comfort.

With accessible tools like tensorHVAC-Pro, engineers and planners can bring scientific precision into every design decision, ensuring that public spaces are not only architecturally impressive but also comfortable, safe, and sustainable for the people who use them every day.
