Draft Rate (DR) Distribution Calculation

Draft Rate (DR) predicts the percentage of occupants dissatisfied due to unwanted air movement and low temperature in localized zones.

FEATURES

Wiratama

10/10/20251 min read

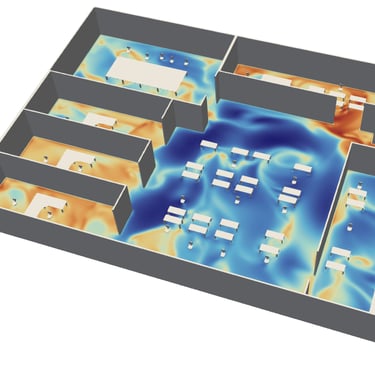

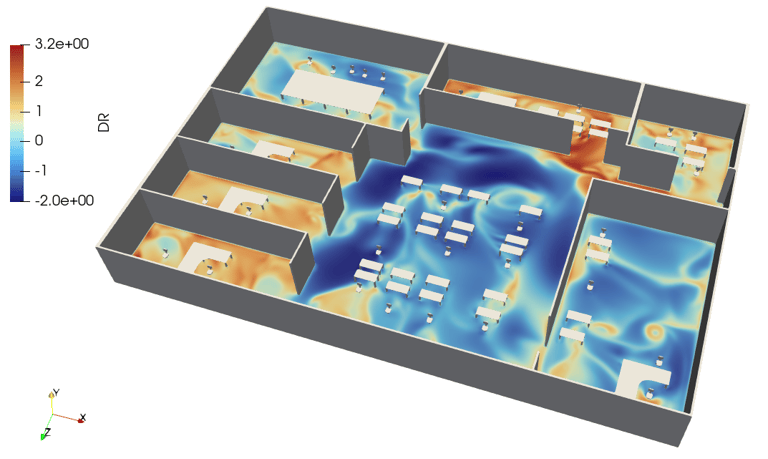

tensorHVAC-Pro makes evaluating Draft Rate (DR) both simple and insightful. Through seamless integration with ParaView, users can visualize DR values on section planes, curved surfaces, or any supported display mode, helping identify areas where occupants may feel unwanted drafts or discomfort. By turning complex airflow data into intuitive visuals, tensorHVAC-Pro enables engineers to fine-tune diffuser placement, airflow rates, and HVAC design for improved thermal comfort.
